Products
Turning Door · System Louver · BBG
High-performance building solutions engineered around insulation, acoustic control and airtightness. Compare the specifications for your site.
01
Turning Door
High-performance PVC door system built for thermal insulation, airtightness, and acoustic comfort.
02
PVC System Louver
Ventilation and screening system optimized for outdoor condenser rooms and other airflow-critical zones.
03
Blind Between Glass (BBG)
Integrated blind system sealed inside insulated glazing for cleaner maintenance and better privacy control.
01Door Solution
Turning Door
High-performance PVC door system built for thermal insulation, airtightness, and acoustic comfort.

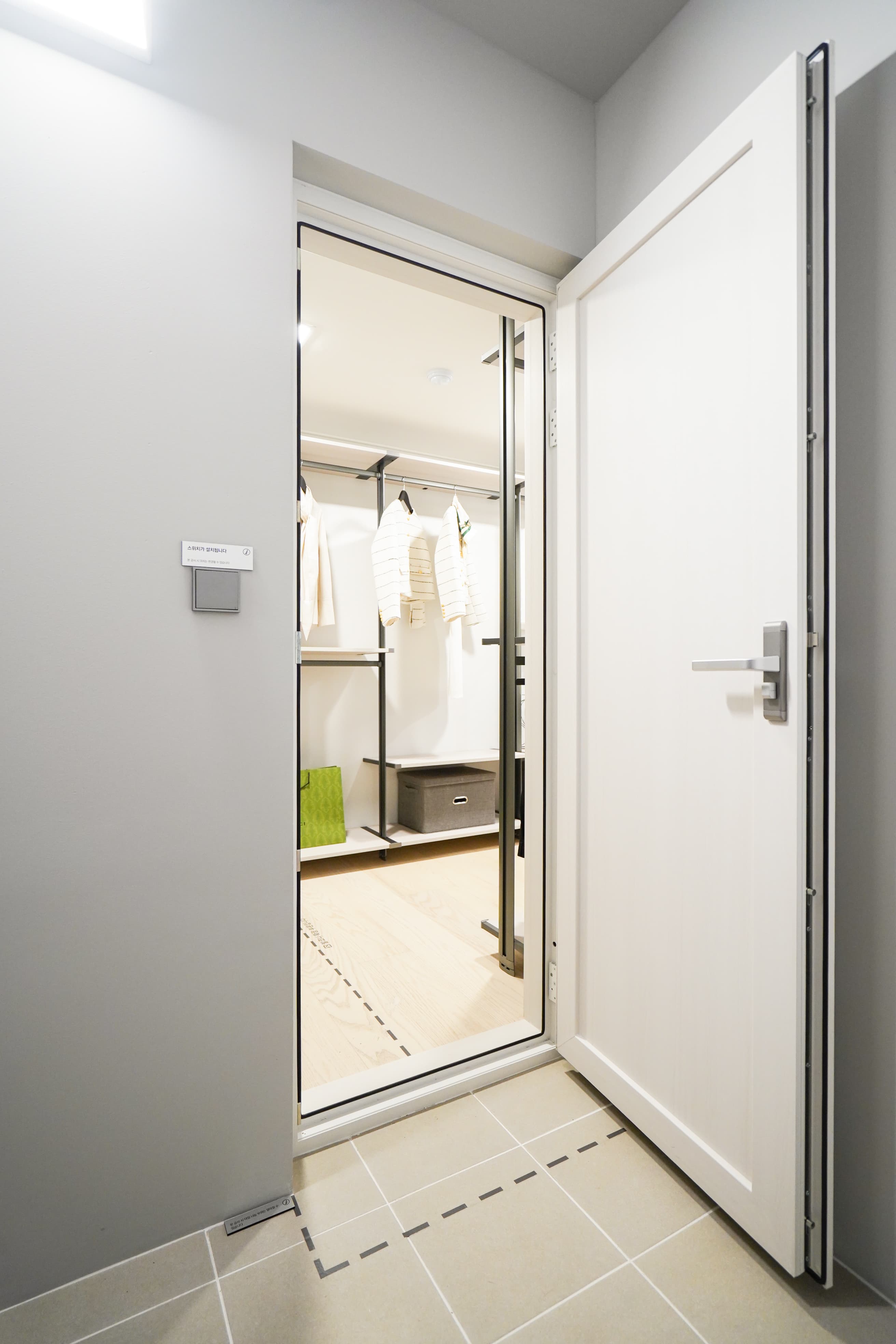

BAUTEK Turning Door is designed for balconies, utility rooms, exterior-facing zones, and other spaces where thermal and acoustic performance matter. It combines refined detailing with site-ready flexibility.
- U-value
- from 0.625 W/㎡·K
- Airtightness
- Grade 1
- Frame
- 130 – 240 mm
Key features
- 01
Thermal Performance
A high-airtightness frame and panel system reduces heat loss and supports energy-efficient building envelopes.
- 02
Acoustic Comfort
Dense framing and optional sound-insulating panel configurations help reduce daily noise transfer.
- 03
Refined Finish
White Line Zero joints and laminate film finishes give a seamless, premium look that lasts.
- 04
Site Flexibility
Multiple frame depths and custom sizing make the system adaptable to varied site conditions.
* Features are based on the insulated acoustic door specification.
Specifications
- Application
Indirect exposure: utility kitchen, outdoor condenser room, balcony
Direct exposure: exterior-type door
- Frame Depth
130 mm
150 mm
180 mm
240 mm
- Sizes
Custom fabrication available
- Color
Interior film color to order
- Panel Thickness
23 mm (27 mm with acoustic core)
33 mm (37 mm with acoustic core)
43 mm (47 mm with acoustic core)
- U-value
0.625 – 1.168 W/㎡·K
- Airtightness
Grade 1
- Acoustic Core
Available with or without

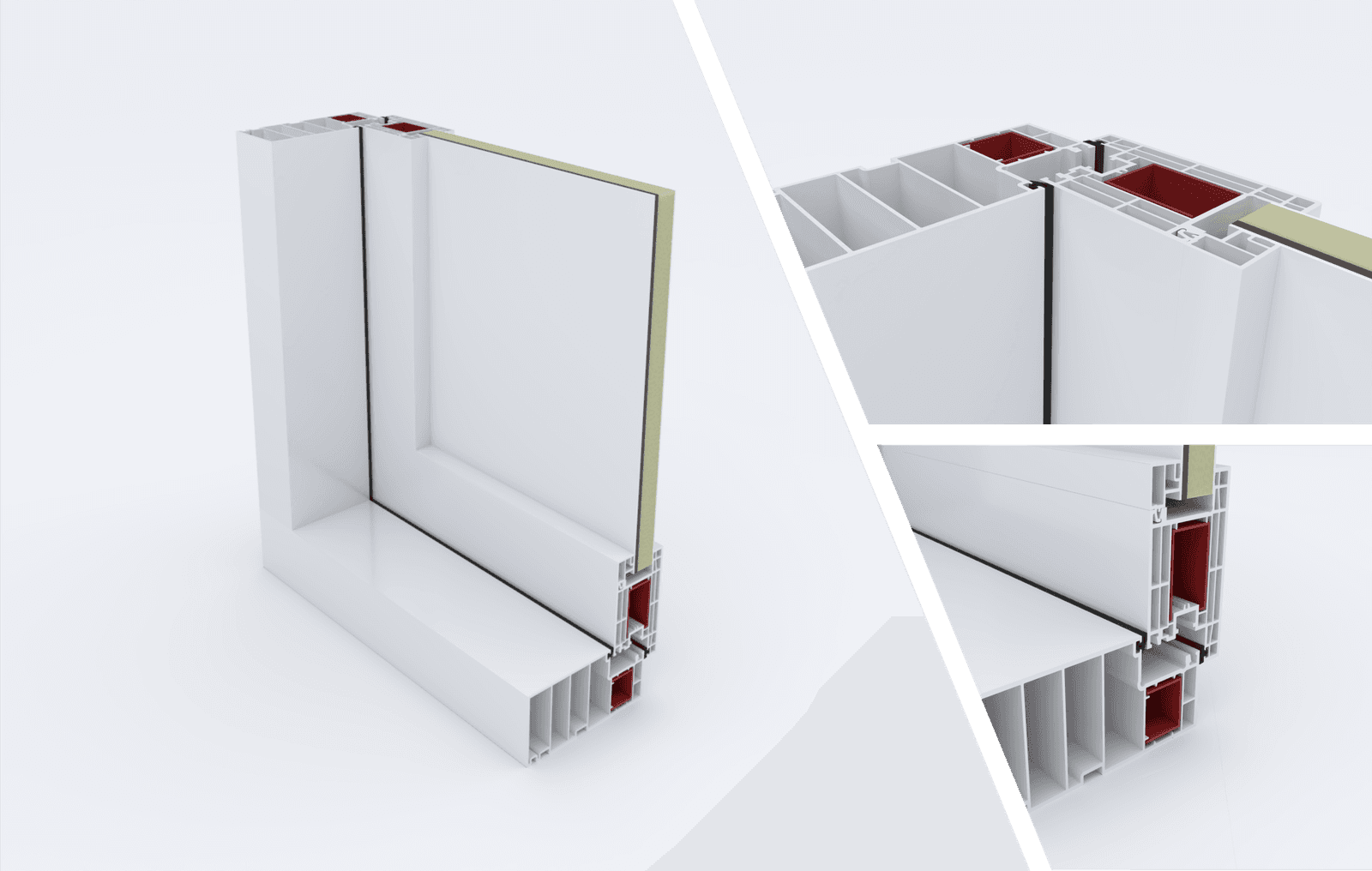

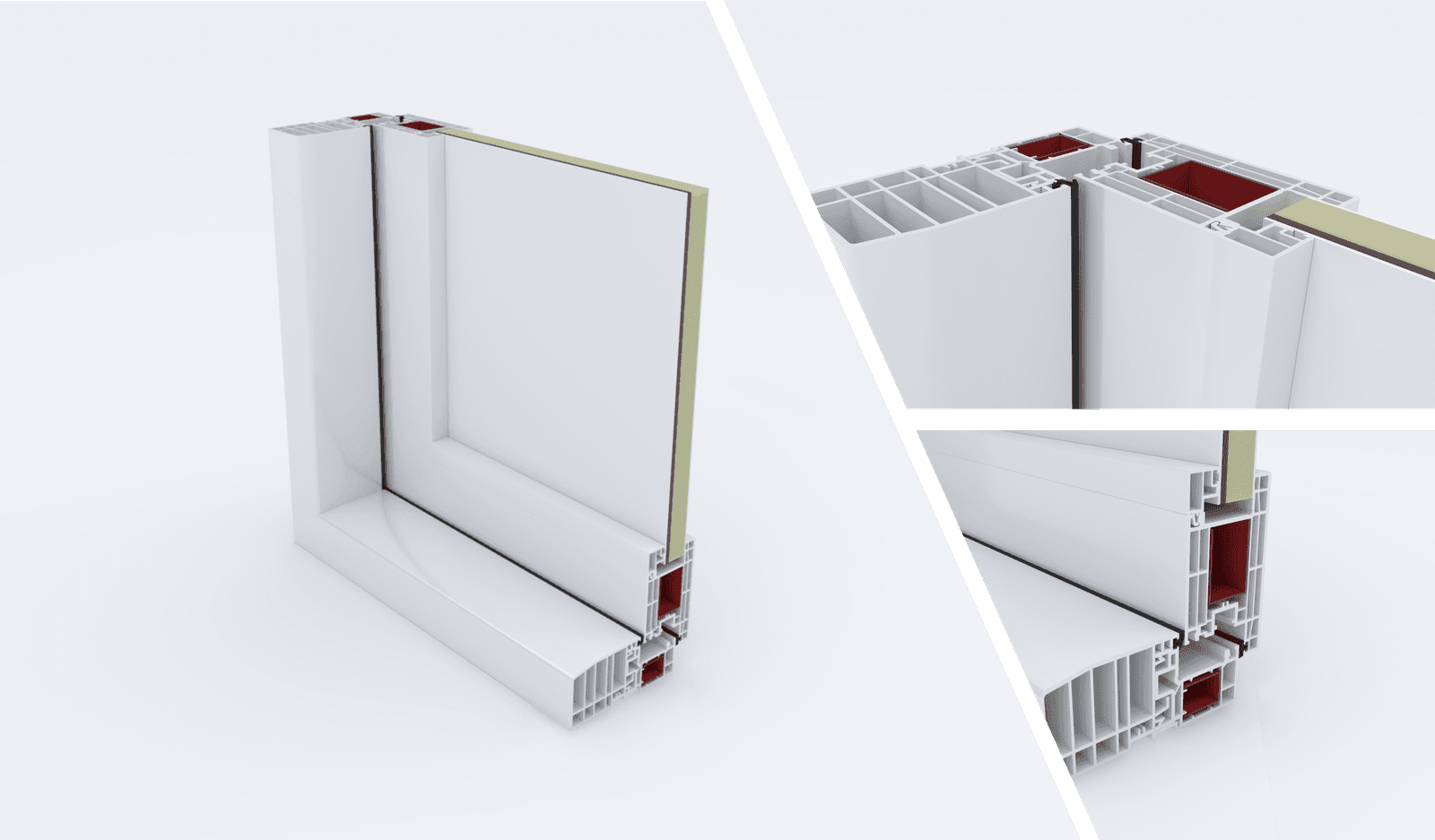

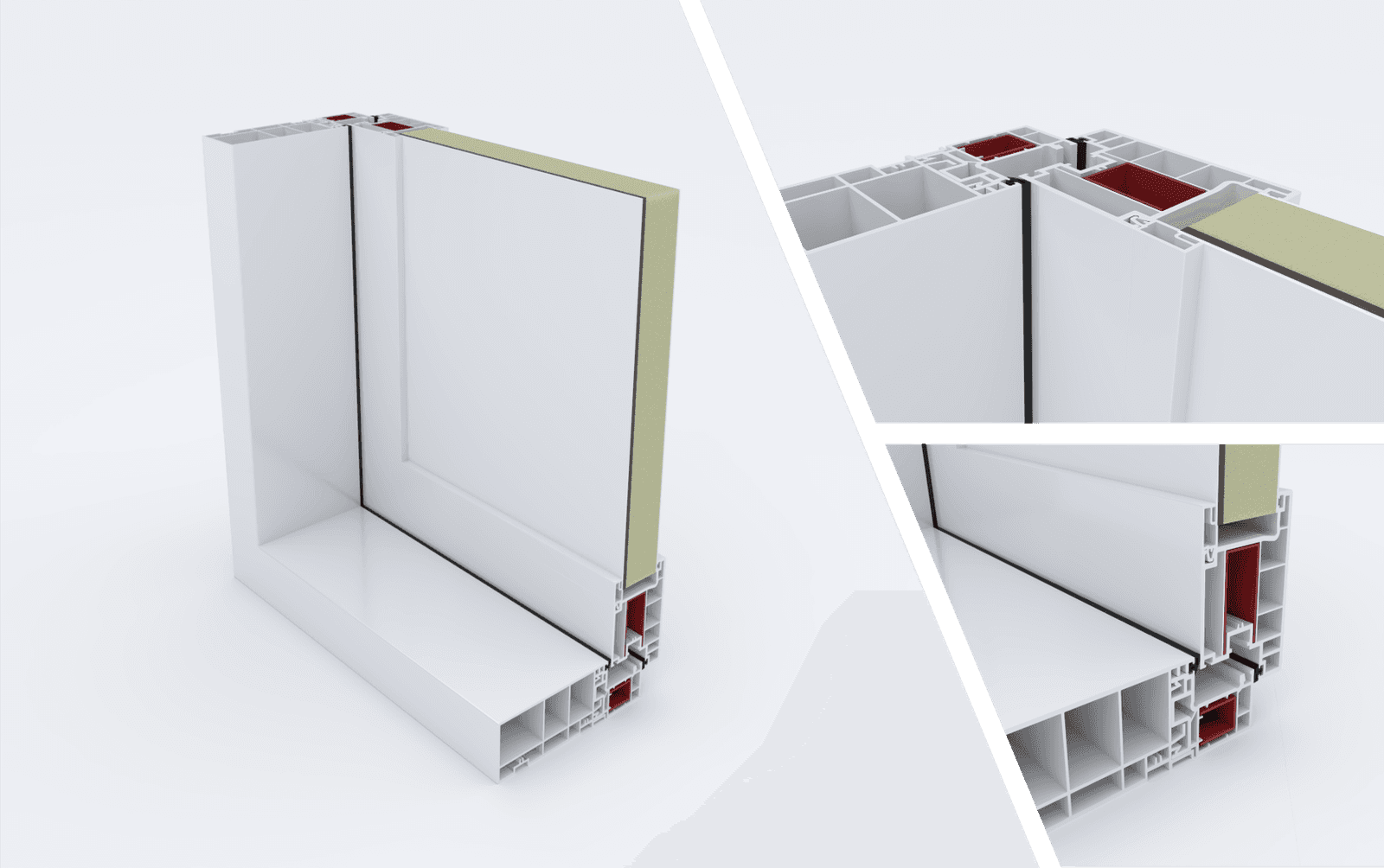

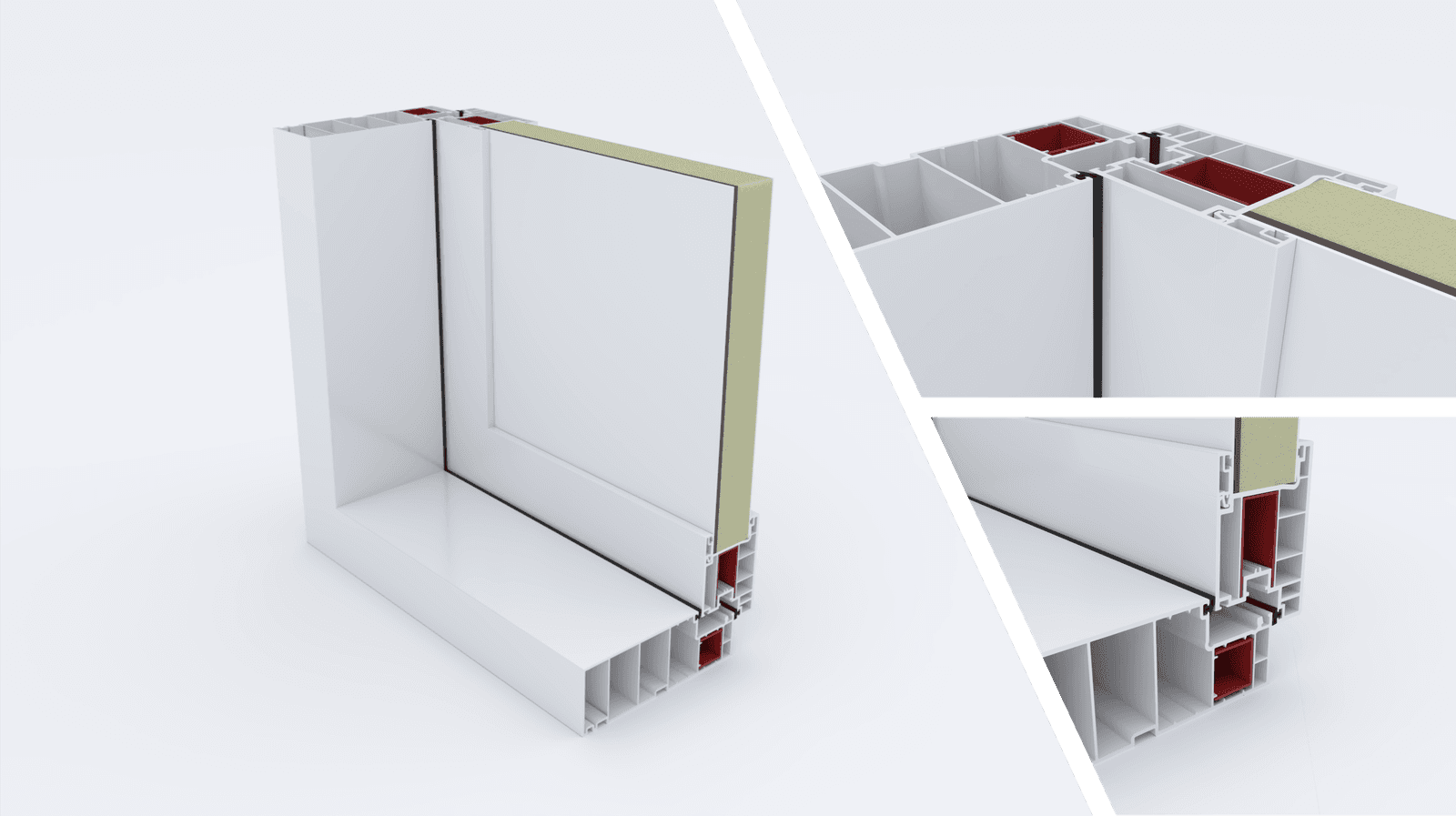

Frame lineup
Six frames, chosen to fit the site
Produced on BAUTEK's proprietary turning-door tooling — select by wall depth and insulation requirement.
.png&w=3840&q=75&dpl=dpl_J5pYjWtu43F8e6VpSJhXYp1BGnJN)
.png&w=3840&q=75&dpl=dpl_J5pYjWtu43F8e6VpSJhXYp1BGnJN)
02Louver Solution
PVC System Louver
Ventilation and screening system optimized for outdoor condenser rooms and other airflow-critical zones.
BAUTEK PVC System Louver balances ventilation, condensation mitigation, insulation strategy, and maintainability. It is engineered for practical field use while maintaining a clean exterior finish.
- U-value
- 2.461 W/㎡·K
- Airtightness
- Grade 1
- Operation
- Auto · Manual
* Figures for the insulated system louver
Key features
- 01
Insulation and Airtightness
Multi-layer blade construction helps manage outside air impact and reduce condensation risk.
- 02
Easy Maintenance
Durable materials and detachable blade structures make cleaning and replacement easier.
- 03
Structural Stability
High-strength materials and a fastened blade structure keep the louver stable, without warping as outdoor conditions change.
- 04
Design Integration
The system is developed to satisfy performance requirements without sacrificing facade quality.
* Features are based on the insulated system louver specification.
Specifications
- Application
Outdoor condenser rooms
- Frame Depth
135 mm
- Operation
Automatic or manual opening options
- Color Options
Full ASA
ASA outside / white inside
Full white
- U-value
2.461 W/㎡·K (insulated system louver)
- Airtightness
Grade 1 (insulated system louver)
03Glass Solution
Blind Between Glass (BBG)
Integrated blind system sealed inside insulated glazing for cleaner maintenance and better privacy control.
BAUTEK BBG places the blind within the glazing cavity, allowing users to control light and privacy without external fabric blinds. It is hygienic, low-maintenance, and suitable for spaces where a cleaner finish matters.
- Build-up
- 26 · 30 · 41 mm
- Max size
- 1,300 × 2,200 mm
- Operation
- Magnetic, no power
Key features
- 01
Light and Privacy Control
Integrated blinds allow adjustable shading and privacy without additional curtain systems.
- 02
User Convenience
The magnetic operation system offers simple control without external power requirements.
- 03
Low Maintenance
Because the blind is sealed within the glazing unit, dust and contamination are minimized.
- 04
Safety
An enclosed system reduces the risk of damage, tangling, and direct contact with moving blind parts.
Specifications
- Glass Build-Up
26 mm (5 + 16 air/blind + 5)
30 mm (5 + 20 air/blind + 5)
41 mm (5 + 20 air/blind + 5 + 6 air + 5)
- Size Range
Width 300 – 1,300 mm
Height 500 – 2,200 mm
- Blind Colors
White
Light beige
- Operation
Magnetic manual control
Contact
Specifications for your project, proposed by BAUTEK.
Share the site location, quantities and target schedule — our team reviews every request and replies within two business days.
