01Door Solution
Turning Door
High-performance PVC door system built for thermal insulation, airtightness, and acoustic comfort.

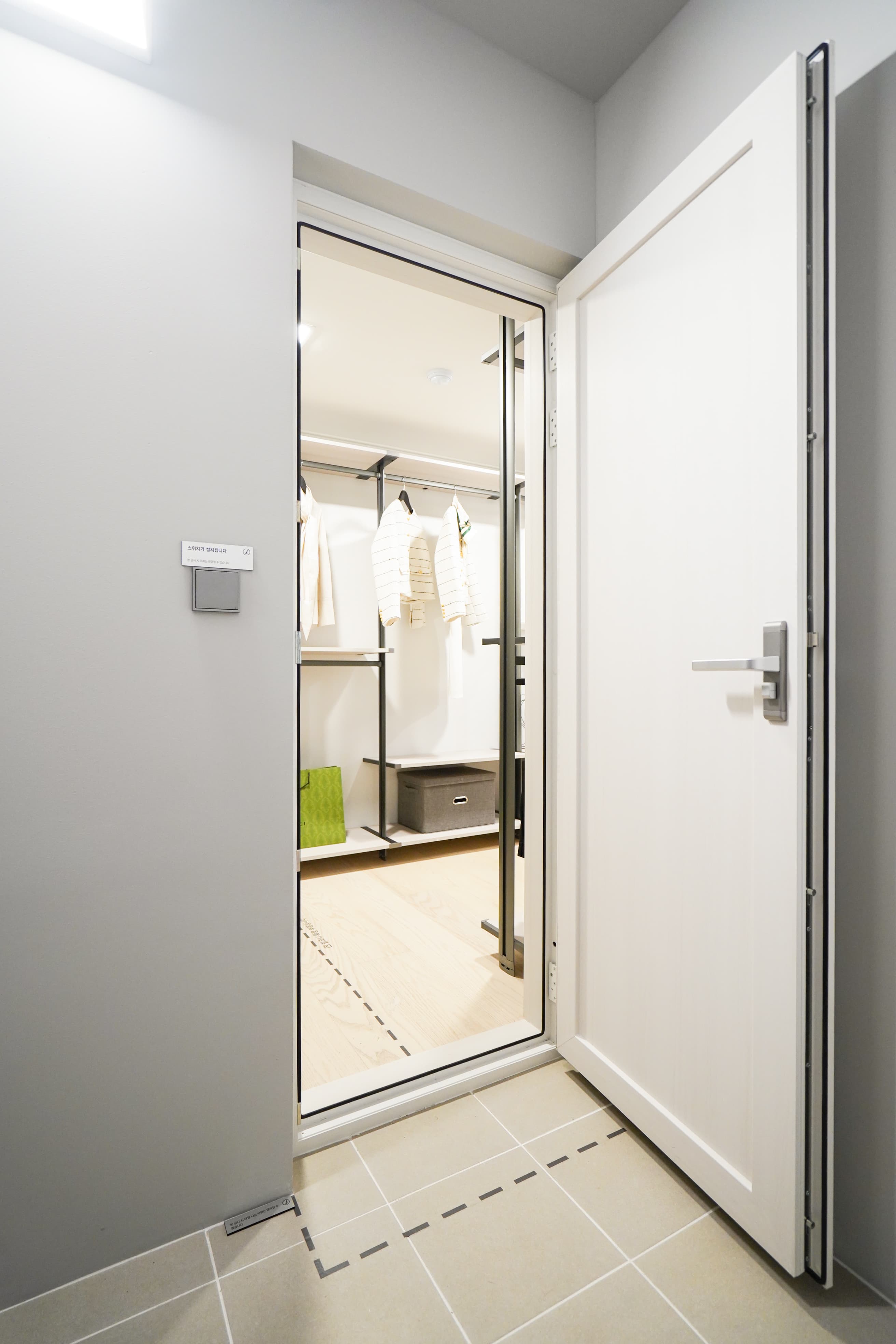

BAUTEK Turning Door is designed for balconies, utility rooms, exterior-facing zones, and other spaces where thermal and acoustic performance matter. It combines refined detailing with site-ready flexibility.
- U-value
- from 0.625 W/㎡·K
- Airtightness
- Grade 1
- Frame
- 130 – 240 mm
01Key features
What makes the Turning Door perform
Features are based on the insulated acoustic door specification.
- 01
Thermal Performance
A high-airtightness frame and panel system reduces heat loss and supports energy-efficient building envelopes.
- 02
Acoustic Comfort
Dense framing and optional sound-insulating panel configurations help reduce daily noise transfer.
- 03
Refined Finish
White Line Zero joints and laminate film finishes give a seamless, premium look that lasts.
- 04
Site Flexibility
Multiple frame depths and custom sizing make the system adaptable to varied site conditions.
02Specifications
Specifications at a glance
- Application
Indirect exposure: utility kitchen, outdoor condenser room, balcony
Direct exposure: exterior-type door
- Frame Depth
130 mm
150 mm
180 mm
240 mm
- Sizes
Custom fabrication available
- Color
Interior film color to order
- Panel Thickness
23 mm (27 mm with acoustic core)
33 mm (37 mm with acoustic core)
43 mm (47 mm with acoustic core)
- U-value
0.625 – 1.168 W/㎡·K
- Airtightness
Grade 1
- Acoustic Core
Available with or without
Test reports, KS certificates and related documents are available on request.
Ask about specifications03Frame lineup

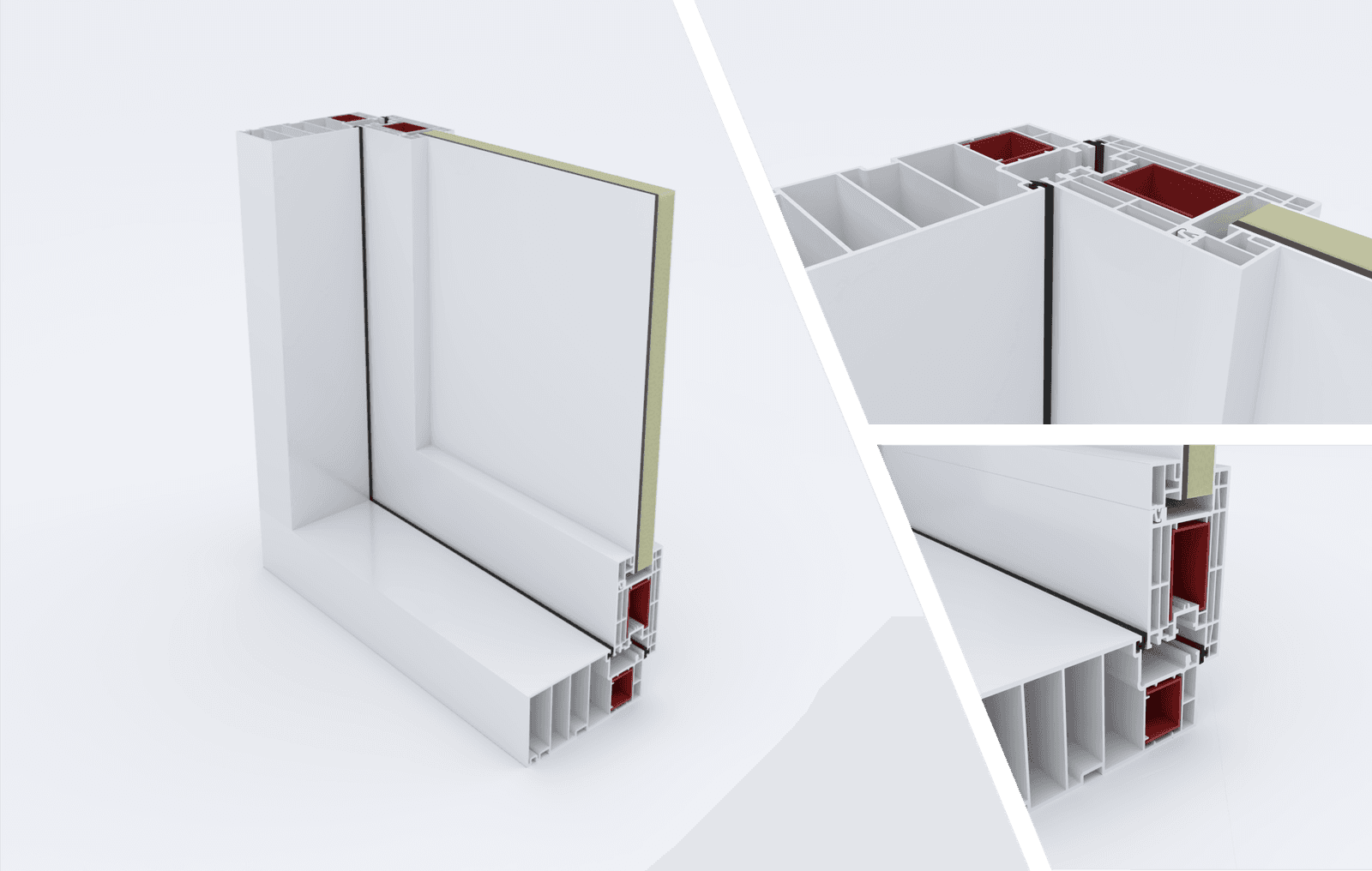

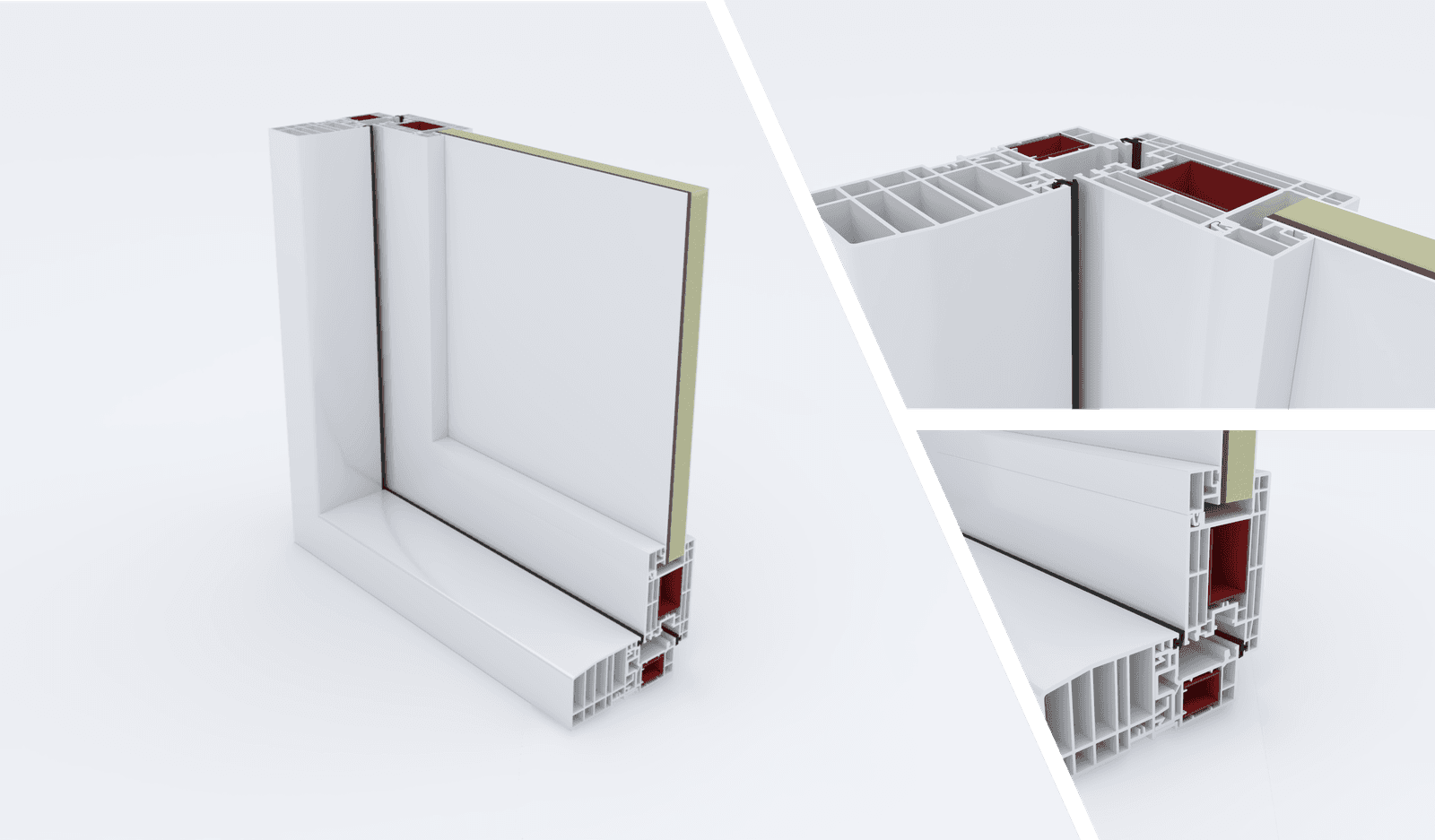

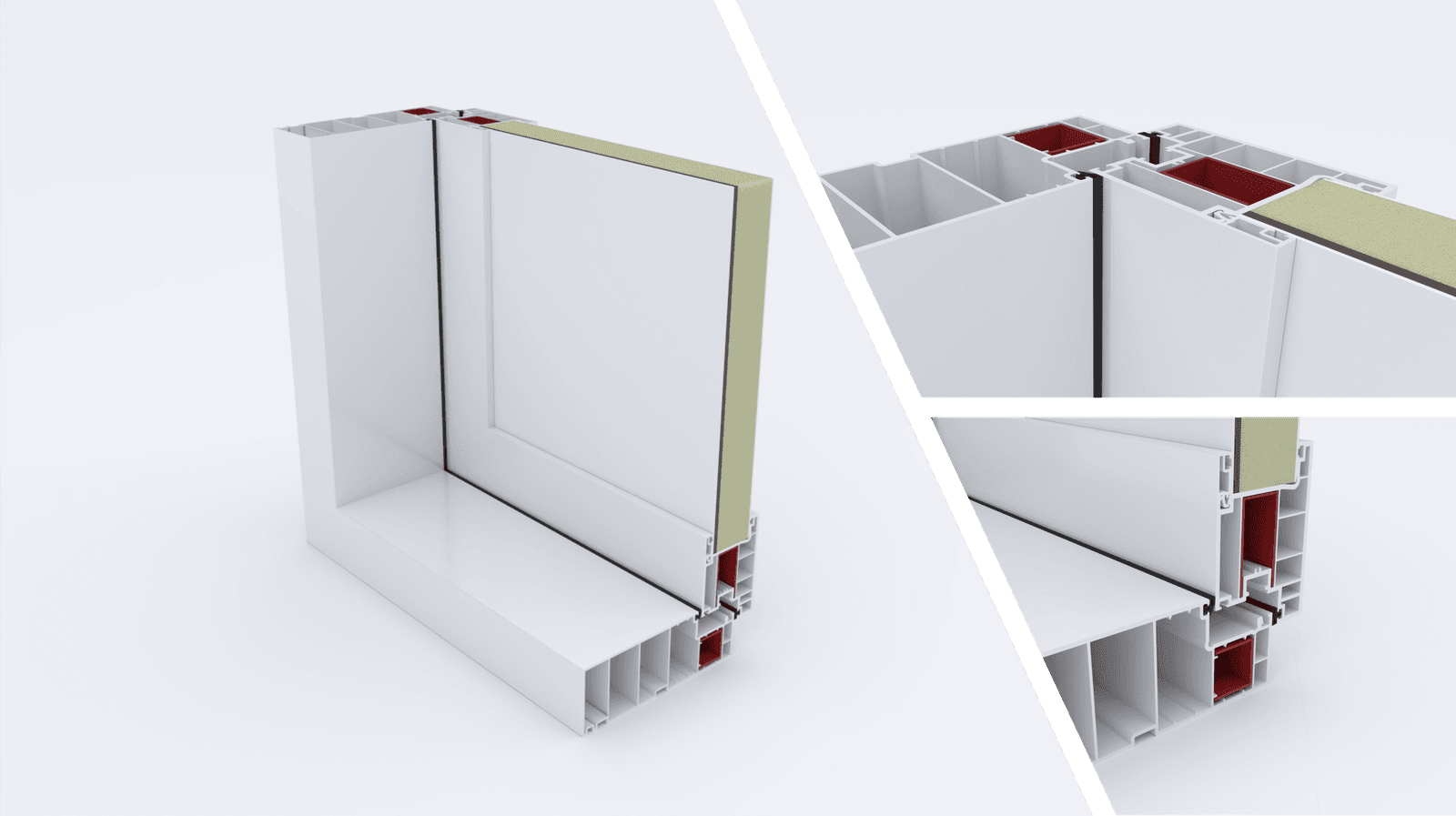

Six frames, chosen to fit the site
Produced on BAUTEK's proprietary turning-door tooling — select by wall depth and insulation requirement.
.png&w=3840&q=75&dpl=dpl_J5pYjWtu43F8e6VpSJhXYp1BGnJN)
.png&w=3840&q=75&dpl=dpl_J5pYjWtu43F8e6VpSJhXYp1BGnJN)
It is commonly used at balconies, utility areas, service rooms, and other locations that benefit from insulation and sound control.
Yes. BAUTEK supports project-based customization for size, frame depth, panel specification, and interior finish options.
